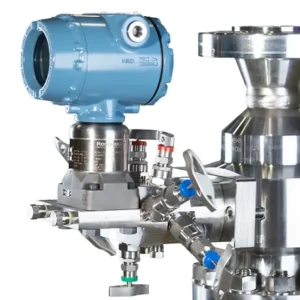

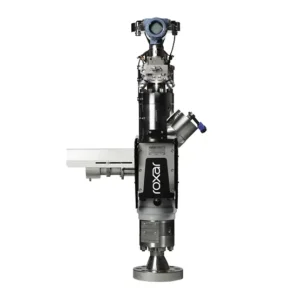

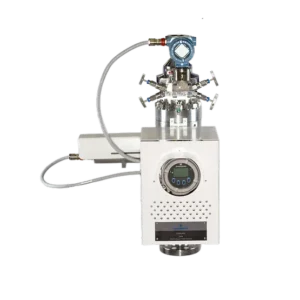

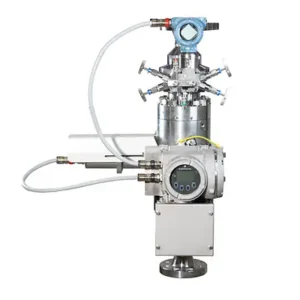

Roxar 2600 Multiphase Flow Meters
The Roxar 2600 Multiphase Flow Meter (MPFM) is a robust, reliable, field proven measurement instrument. The compact, inline meter provides high quality rates of oil, water and gas in upstream multiphase flow lines, from the easiest to most challenging applications. From onshore to offshore, conventional wells to unconventional wells, oil wells to gas wells, fixed installations to mobile well testing, single well to multi well, the Roxar 2600 MPFM can be relied upon to provide the data you need.Confidently measure pressure and level with the Rosemount 3051 In-Line Pressure Transmitter. Engineered for 10-year installed stability and 0.04% of span accuracy, this industry-leading pressure transmitter provides you with the information necessary to run, control and monitor processes. Available with a graphical, back-lit display, Bluetooth® connectivity, and enhanced software capabilities designed to access the data you need faster than ever before.
Specifications

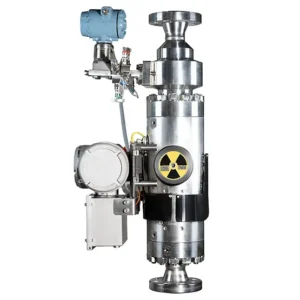

| Applications | Roxar 2600 MPFM M: Impedance measurement Single well applications Direct well head monitoring and trending of oil, water and gas Fractions and rates 0-85% GVF 0-100% WLR Flow velocity 5-25 m/s Roxar 2600 MPFM MV: Impedance and venturi measurement Single or multi well applications Flow rates for oil, water and gas over a wide range of applications 0-100% GVF 0-100 WLR Flow velocity 2-40 m/s Roxar 2600 MPFM MVG: Impedance, venturi and gamma density measurement Single or multi well applications Flow rates for oil, water and gas over the full range of applications 0-100% GVF 0-100% WLR Flow velocity 1-40 m/s |
| Installation | Vertical upwards flow |
| Meter Sizes | ID 1 1/2 in (35mm) to ID8 in (173mm) |
| Design Pressure | Up to 5,000 psi (345 bar) |
| Design Temperature | -4 °F (-20 °C) to 266 °F (130 °C) Lower minimum temperatures can be accommodated, assessed on a case by cases basic. |
| Process Wetted Material | Duplex UNS S31803 Stainless steel UNS S31600 Super duplex UNS S32760 Inconel 625 UNS N06625 PEEK natural |
| Flange Connection | ANSI flanges or hubs with clamp connectors |
| Gamma measurement (when applicable) | Compact gamma system Source: Cs-137 2, 5 or 8.3 mCi Half-life 30.1 years |
| Power Supply | 18-30 VDC 100-240 VAC Power consumption: < 20 W |
| Communication Protocol | Modbus RTU Modbus TCP HTTP |
| Communication Interface | RS-485 Ethernet |
| Mounting | Painted aluminium Ex d housing for hazardous area SS 316L Ex d housing for hazardous area |
| Certifications/Approvals | Hazardous area certification: ATEX, IECEx, cCSAus Design code: ASME B16.5, ASME B31.3 Material specification compliance: ASME B31.3 Sour service wetted parts: NACE MR 0175, ISO 15156 |
Features
- Real time, three-phase measurement without the need for separation
- Modular design and selectable advanced software features to fit your application needs
- Flexible and adaptable configuration options throughout the lifetime of your field

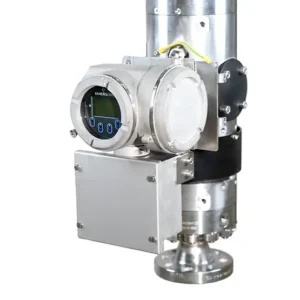

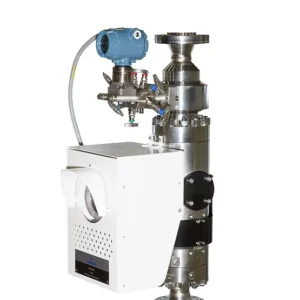

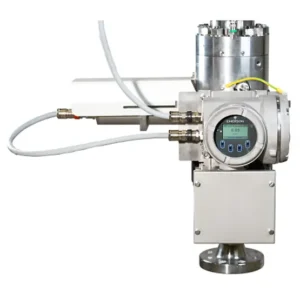

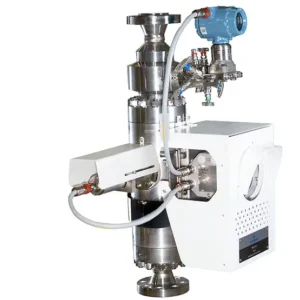

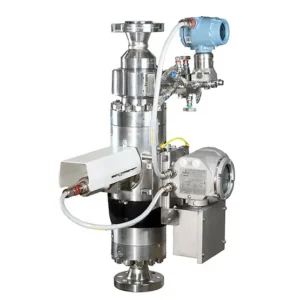

- Roxar 5726 Multiphase Transmitter mounted directly onto the flow meter, providing all-in-one, robust, future facing capabilities
- Intuitive and user-friendly operator interface tool for calibration, configuration and operation
- The Roxar Rapid Adaptive Measurement embedded software supporting automation and trustworthy measurement in dynamic multiphase flow
- Robust full-range non-gamma meter version available, for operators who prefer to avoid the use of a radioactive source
- Fully compatible with Roxar 2600 Multiphase Flow Meter Performance Monitoring, giving operators continuous access to Emerson expertise and support
- The Roxar Multiphase Salinity System (RMSS) available as an additional module, providing live salinity content information when operating in water-dominant flow
