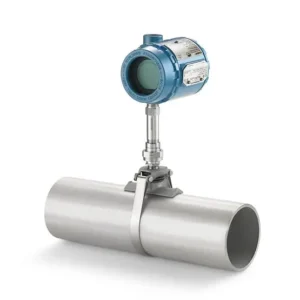

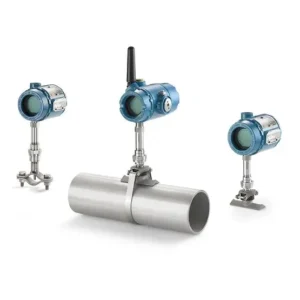

Rosemount X-well Technology
Rosemount™ X-well™ Technology accurately measures internal process temperature without a thermowell or process penetration. Safely record process temperature with this non-intrusive solution – no cutting pipes, calculating wake frequency or process shutdown.
- Decrease design and engineering time by up to 65%
- Improve safety by eliminating process shutdowns and pipe modification
- Use in a wide variety of monitoring and challenging applications
- Reduce total cost of ownership by 30%
Specifications
| Input | Rosemount X-well Technology with 3144P Transmitter: Single sensor capability with RTD sensor inputs Rosemount X-well Technology with 648 Transmitter: Single sensor capability with RTD sensor inputs |
| Output Signal | Rosemount X-well Technology with 3144P Transmitter: 4-20 mA/HART® protocol Rosemount X-well Technology with 648 Transmitter: WirelessHART® protocol |
| Housing | Dual-compartment field mount |
| Display/Interface | Large LCD display with percent range graph and buttons/switches |
| Diagnostics | Rosemount X-well Technology with 3144P Transmitter: Basic diagnostics including open/short sensor diagnostics Rosemount X-well Technology with 648 Transmitter: Basic diagnostics including open/short sensor diagnostics |
| Certifications/Approvals | Rosemount X-well Technology with 3144P Transmitter: Hazardous location, marine type Rosemount X-well Technology with 648 Transmitter: Hazardous location, marine type See full specs for complete list of certifications |
| Power Module Life | Rosemount X-well Technology with 648 Transmitter: Up to 10-year life, field replaceable (order separately) |
| Antenna Type | Rosemount X-well Technology with 648 Transmitter: External (standard and extended range) |
| Update Rate | Rosemount X-well Technology with 648 Transmitter: 1 sec. to 60 min., user selectable |
Features

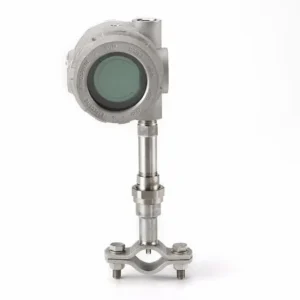

- Rosemount X-well Technology Features with 3144P Transmitter
- Dual compartment housing provides superior protection in harsh environments
- Minimum and maximum temperature tracking allows monitoring of temperature extremes for easy troubleshooting
- Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting

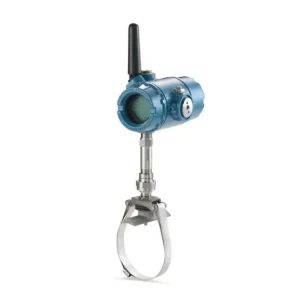

- Rosemount X-well Technology Features with 648 Transmitter
- Best-in-class wireless accuracy and stability for process automation
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
- LCD display offers access to measurement and diagnostic information in the field, enhancing process visibility
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Durable dual-compartment housing offers added field reliability
