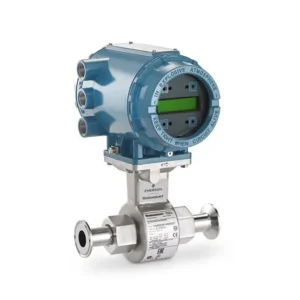

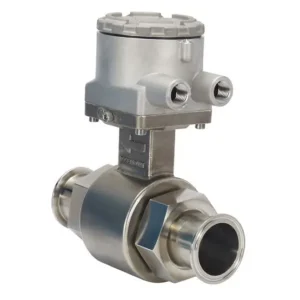

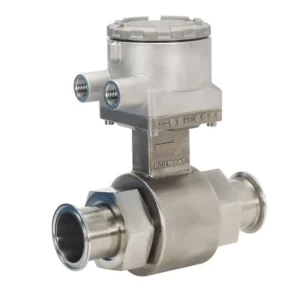

Rosemount 8721 Hygienic Magnetic Flow Meter Sensors
The Rosemount 8721 Hygienic Magnetic Flow Meter Sensor uses an all-welded meter body that is specifically designed for food, beverage and life science applications that demand safe, hygienic and reliable performance. All contact surfaces are constructed of FDA-approved materials designed in accordance with 3A standards. Additionally, the 8721 is available with a variety of sanitary process connections with easily accessed process gaskets to facilitate efficient inspection and maintenance.
Specifications
| Accuracy | Up to 0.25% of volumetric flow rate accuracy over 13:1 flow turndowns, 0.5% over 40:1 flow turndown |
| Line Sizes | ½-4 inch (15-100 mm) |
| Liner Materials | PFA |
| Electrode Materials | 316L Stainless Steel, Nickel Alloy, Platinum Consult factory for additional material options |
| Process Connections | Tri-Clamp® Sanitary Coupling IDF Sanitary Coupling (screw type) Weld Nipple DIN 11851 (Imperial and Metric) DIN 11864 (-1 and -2 Form A) SMS 1145 DEN US 50 Weld Nippl |
| Product Certifications | 3-A, EHEDG Type EL, PMO (M-b-350) |
| Interchangeability | Compatible with all 8700 Series transmitters Compatible with Legacy transmitters: 8712D, 8712C, 8732C, 8742C |
Features
- Lightweight, compact stainless steel design makes installation easy
- Rely on FDA-approved materials including 3-A finish certified by EHEDG for use in Grade A milk
- Fully-welded meter body design allow for safety in hygienic applications
- Sensor is CIP/SIP cleanable and the sensor I.D. matches the process piping to eliminate hard-to-clean step changes
- Satisfy virtually any requirement with a variety of available sanitary process connections
- Better facilitate inspection and maintenance with easily accessed process gaskets
- Cut costs and improve efficiency with an obstructionless design featuring no moving parts to maintain or repair
Related Product

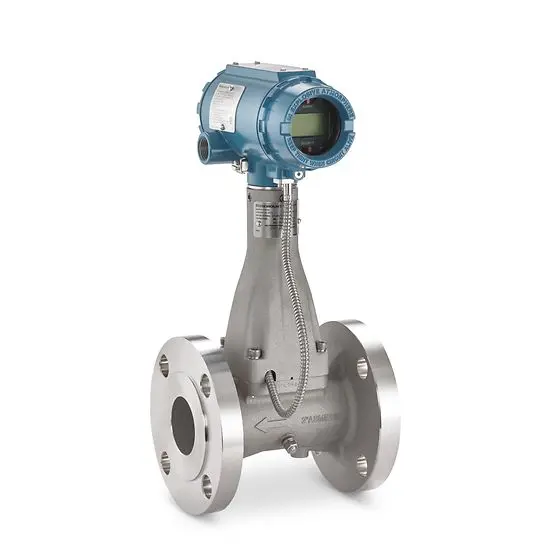

Rosemount 8600 Vortex Flow Meters

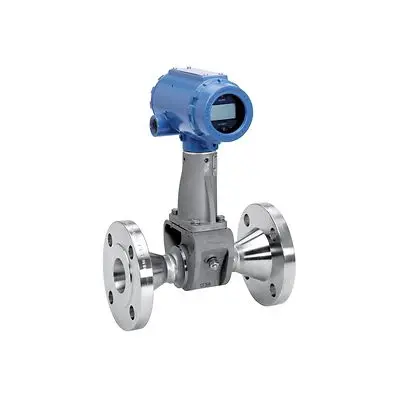

Rosemount 8800 Reducer Vortex Flow Meters

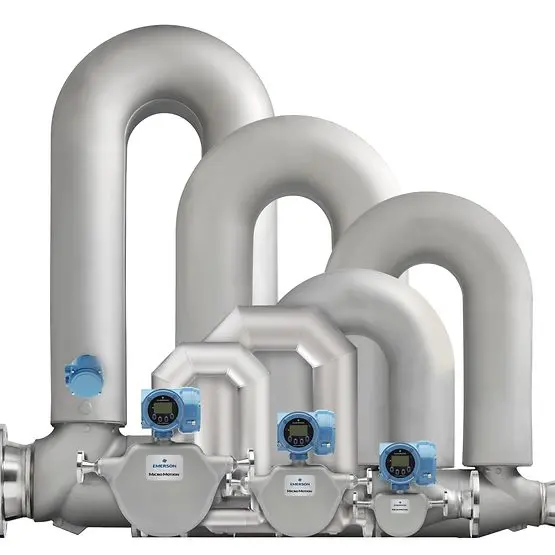

Coriolis Flow and Density Meter

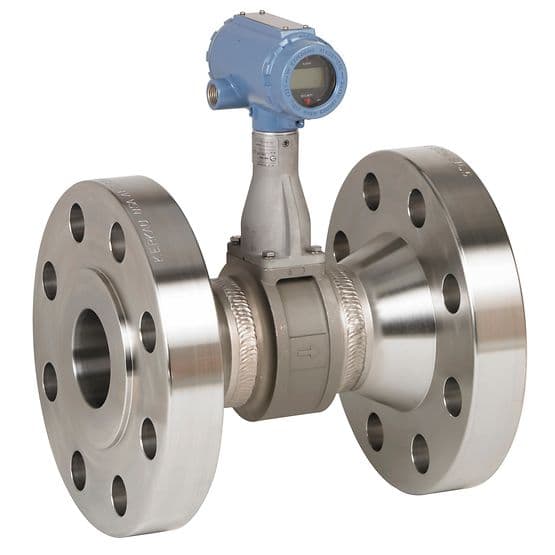

Rosemount 8800 Series Vortex Flow Meters
