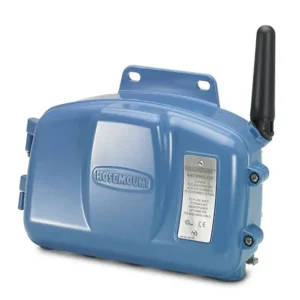

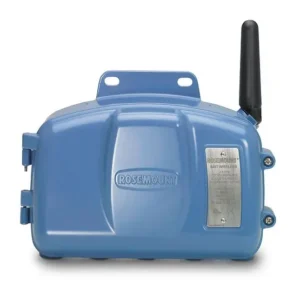

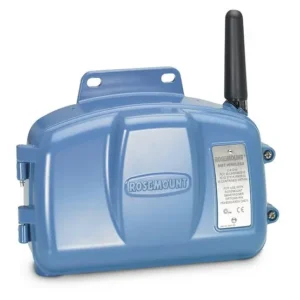

Rosemount 848T Wireless Temperature Transmitter
Rosemount 848T Wireless Temperature Transmitter is the premier choice for high density measurements via a WirelessHART®device. This transmitter accepts up to four independently configurable inputs, dramatically reducing your installation and operational costs per point through the use of a smart, reliable and secure wireless network. Additionally, the field-hardened enclosure allows for installation close to any process, even in hazardous areas.
Specifications
| Input | Four independently configurable inputs, including 2-, 3- and 4-wire RTDs, thermocouples, 0-1000mV and 0-10V, 2-, 3- and 4-wire ohm, and 4-20 mA signals |
| Output Signal | WirelessHART® Protocol |
| Housing | Field hardened aluminum enclosure |
| Calibration Options | 5-point calibration |
| Certifications/Approvals | Hazardous location, marine type, see full specs for complete list of certifications |
| Update Rate | 4 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Antenna Type | External (standard and extended range) |
Features
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- Best price per point solution accepts four configurable inputs (RTD, thermocouple, ohm, millivolt and 4 to 20 mA signals)
- Field-hardened enclosure allows for installation close to any process, even in harsh environments and hazardous areas
- Extended range antenna offers wireless communication for long distance installations
- Designed with up to eight configurable alerts for advanced measurement monitoring
- Device dashboards display an easy interface for simplified device configuration and diagnostic troubleshooting
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
