Rosemount 5900S Radar Level Gauge
The Rosemount 5900S Radar Level Gauge delivers ±0.5 mm (0.020 in.) instrument accuracy, reducing level measurement uncertainty to a minimum. It enhances your storage operation by providing certified custody transfer accuracy, better inventory management and reliable loss control data.
The Rosemount 5900S is normally combined with high precision multi-spot temperature sensors for highest accuracy API standard net volume calculations.
The Rosemount 5900S takes overfill safety to a higher level with an innovative 2-in-1 feature which includes two radar gauges in one housing for independent level and overfill measurement. It is SIL 2 and SIL 3 certified according to IEC 61508 and enables API 2350 compliant solutions.
Specifications
| Accuracy | ± 0.5 mm (± 0.020 in.). |
| Stability | Typically < ± 0.5 mm (0.020 in.) in -40 to +70 °C (-40 to +158 °F). |
| Update Rate | New measurement every 0.3 second. |
| Communication Protocol | Foundation™ Fieldbus for connection to Rosemount 2410 with self-configuring Tankbus or any Foundation™ Fieldbus host system. A Rosemount 5900 level gauge in combination with a 2410 Tank Hub enables wireless communication and emulation of gauges from other manufacturers. |
| Custody Transfer Approval | OIML R85:2008, and national certifications such as PTB, NMi etc. |
| Safety | • SIL 2 and SIL 3 certified. • TÜV tested and WHG approved for overfill prevention. |
| Metrology Sealing | Yes. |
| Emulation Capability | Possible to integrate with legacy tank gauging systems. Supports emulation of other vendors’ communication protocols: E.g. Enraf, L&J Tankway, Varec Mark/Space, Whessoe, GPE, Sakura and Tokyo Keiso. |
| Power Supply | • FISCO: 9.0 - 17.5 VDC polarity insensitive (for example from 2410 Tank Hub). • Entity: 9.0 - 30.0 VDC polarity insensitive. |
| Ambient Temperature | -40 to +70 °C (-40 to +158 °F). Minimum start-up temperature is -50 °C (-58 °F). |

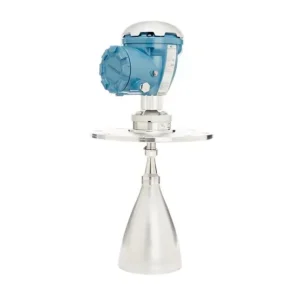

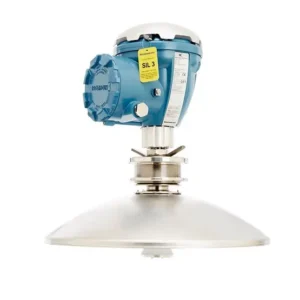

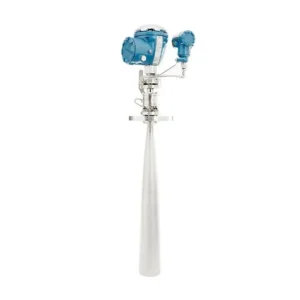

| Antenna Type | Parabolic antenna, still-pipe array antenna, horn antenna, LPG/LNG antenna. |
Features
- Get highest certified custody transfer accuracy for precise asset management of bulk liquid storage.
- Achieve higher safety with third party certified IEC 61508 SIL 2 or SIL 3 capability.
- Use one tank opening to install the 2-in-1 gauge for either redundant level measurements or to achieve independent safety and level measurement systems.
- Benefit from convenient and safe installation with two-wire IS bus power supply.
- Include wired and/or wireless data transmission.
- Measure in all bulk storage tank types and products, ranging from liquefied gases, light products, crude oil and bitumen.
