Rosemount 5900C Radar Level Gauge
The Rosemount 5900C Radar Level Gauge provides ± 1mm (0.04 in.) instrument accuracy. It is normally combined with high precision multiple spot temperature sensors for net volume calculations. It is SIL 2 certified according to IEC 61508.
Specifications
| Accuracy | ± 1mm (0.04 in.), ± 2mm (0.08 in.) |
| Stability | Typically < ± 0.5 mm (0.020 in.) in -40 to +70 °C (-40 to +158 °F). |
| Update Rate | New measurement every 0.3 second. |
| Communication Protocol | Foundation™ Fieldbus for connection to Rosemount 2410 with self-configuring Tankbus or any Foundation™ Fieldbus host system. A Rosemount 5900 level gauge in combination with a 2410 Tank Hub enables wireless communication and emulation of gauges from other manufacturers. |
| Safety | • SIL 2 certified. • TÜV tested and WHG approved for overfill prevention. |
| Emulation Capability | Possible to integrate with legacy tank gauging systems. |
| Power Supply | • FISCO: 9.0 - 17.5 VDC polarity insensitive (for example from 2410 Tank Hub). • Entity: 9.0 - 30.0 VDC polarity insensitive. |
| Ambient Temperature | -40 to +70 °C (-40 to +158 °F). Minimum start-up temperature is -50 °C (-58 °F). |

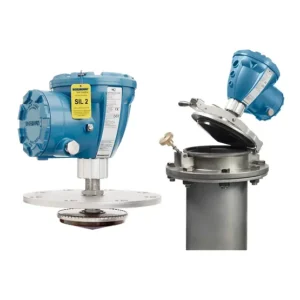

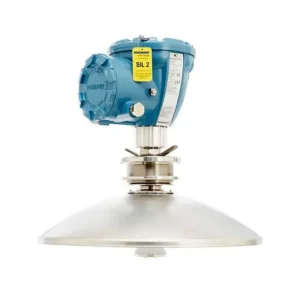

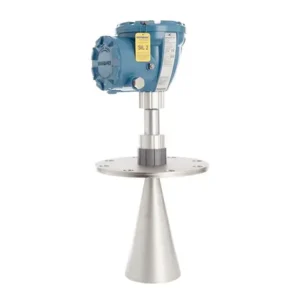

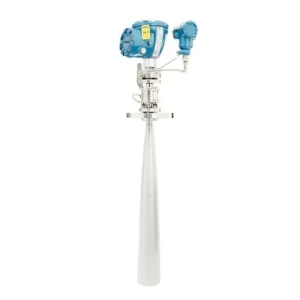

| Antenna Type | Parabolic antenna, still-pipe array antenna, cone antenna, LPG/LNG antenna, 1- and 2-in. still-pipe antennas. |
Features
- With Smart Echo Supervision™ technology, Rosemount Non-Contacting Radars automatically track all echoes, including those from obstructions in the vessel, and distinguish them from the real product surface echo. This ensures the true product level is reliably and accurately reported.
- Low 12V dc lift-off voltage
- Immune to intermittent power loss
- Unique PTFE seal design eliminates the need for o-rings
- Model tailored to SIS requirements, certified to IEC 61508 SIL 2
- Solid measurement with unique solids algorithm
- Signal Quality Metrics: Proactively alerts the operator ahead of potential issues such as antenna coating / build-up, enabled preventative maintenance to be scheduled
- Smart Meter Verification: Built-in automatic diagnostic tool ensures transmitter health and integrity without interrupting the process. Provides a simple pass/fail report helping identify and resolve potential issues. May be run on a user-configurable schedule or on demand.
- Smart Proof Test Package: Quick and easy periodic proof-testing with built-in wizards, offering step-by-step guidance, dynamic visualizations, and ability to save or print detailed reports
- Process seal antenna for applications with heavy condensation and aggressive medias. Also available with Tri Clamp connection.
- 3-A certified for hygienic applications
