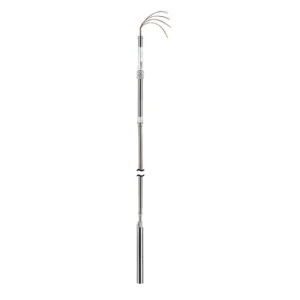

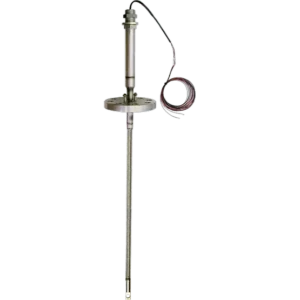

Rosemount 566 Multiple Spot Temperature Sensor
The Rosemount 566 Multiple Spot Temperature Sensor measures temperature with a number of Pt-100 spot elements placed at different heights to provide a tank temperature profile and an average temperature in cryogenic and refrigerated storage tanks. Only fully immersed elements are used to determine product temperature. Each sensor is connected to a Rosemount 2240S Multi-input Temperature Transmitter.
Specifications
| Accuracy | DIN Class A. Calibration option: Individually calibrated spot elements with four-wire connection enables ±0.025 °C (±0.045 °F) total sensor accuracy. |
| Element Type(s) | Pt-100 spot elements according to EN 60751. |
| Number of Spot Elements | Up to 16 RTD spot elements: Three-wire common return or individual wiring. Four-wire individual wiring. |
| Measurement Range | -170 to +100 °C (-274 to +212 °F) |
| Overall Length | Standard is 5-70 m (16.4-230 ft). Other lengths on request. |
| Protective Sheath | Stainless steel, AISI 316. Wall thickness 0.3 mm (0.012 in.). ∅= 1 in. |
Features
- Get custody transfer net volume accuracy with three- or four-wire multiple spot temperature sensors for bulk liquid cryogenic storage tanks.
- Specialized sensor for cryogenic tank temperature measurement in LNG and other liquefied gas applications.
- Improve accuracy with unique sensor calibration.
- Measure liquid temperature with up to 16 spot elements.
