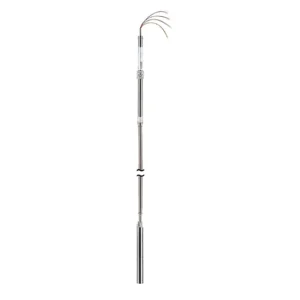

Rosemount 565 Multiple Spot Temperature Sensor
The Rosemount 565 Multiple Spot Temperature Sensor measures temperature with a number of Pt-100 spot elements placed at different heights to provide a tank temperature profile and an average temperature. Only fully immersed elements are used to determine product temperature. Each sensor is connected to a Rosemount 2240S Multi-input Temperature Transmitter.
Specifications
| Accuracy | 1/6 DIN Class B (standard), 1/10 DIN Class B (option). Calibration option: Individually calibrated spot elements with four-wire connection enables ±0.025 °C (±0.045 °F) total sensor accuracy. |
| Element Type(s) | Pt-100 spot elements according to EN 60751. |
| Number of Spot Elements | Up to 16 RTD spot elements: Three-wire common return or individual wiring. Four-wire individual wiring. |
| Measurement Range | -50 to +250 °C (-58 to +482 °F) |
| Overall Length | Standard is 5-70 m (16.4-230 ft). Other lengths on request. |
| Protective Sheath | Stainless steel, AISI 316. Wall thickness 0.3 mm (0.012 in.). ∅= 1 in. |
Features
- Get custody transfer net volume accuracy with three- or four-wire multiple spot temperature sensors for bulk liquid storage tanks.
- Improve accuracy with unique sensor calibration.
- Measure liquid temperature with up to 16 spot elements.
- Combine with integrated water level sensor (Rosemount 765 Multiple Spot Temperature and Water Level Sensor).
- Select from a wide range of accessories such as anchor weights and vapor boots.
