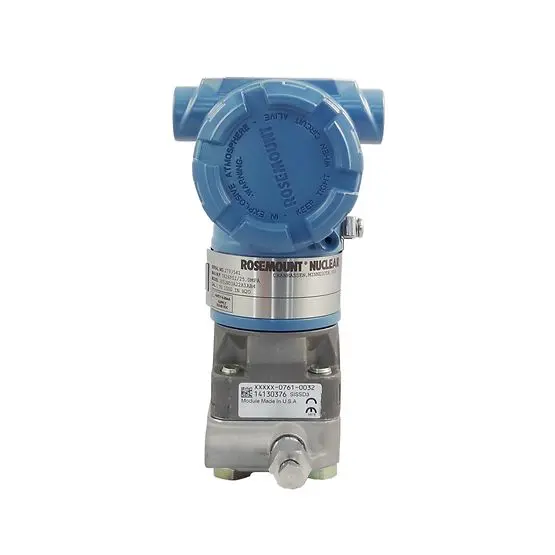

Rosemount 3155N Nuclear Qualified Pressure Transmitter
Offering accurate differential and gage analog pressure measurements for nuclear applications, the Rosemount 3155N Nuclear Qualified Pressure Transmitter is engineered for reliable performance over an extended service life. This is an industry-standard solution qualified per IEEE Std 323™-1974/1983/2003 and this device withstands radiation exposure of 167 Mrads TID gamma and seismic levels to 8.5g ZPA. This resilient transmitter is also engineered for high steam temperature performance up to 437 °F (225 °C).
Specifications
| Output Signal | 4-20 mA |
| Rangedown | Up To 10:1 (5:1 for Range 1) |
| Measurement Range | Up to 2000 psi (13.79 MPa) Differential, Up to 4000 psig (27.58 MPa) Gage |
| Housing Material | SST |
| Process Wetted Material | 316L SST |
| Seismic Rating | 8.5g ZPA Seismic |
| Radiation Rating | 165 Mrad (1.65 kGy) TID Gamma Radiation |
| Steam/Pressure Temperature | 437°F (225°C) Steam/Temperature |
| Qualification Standard | IEEE Std 323™-1974/1983/2003 IEEE Std 344™ – 1975/1987/2004 |
| Product Literature | The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any. |
| Contact Information | Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5200 or RNII.info@emerson.com for the most current information available |
Features
- Qualified per IEEE Std 323™-1974/1983/2003 for an industry-standard solution
- Delivers 0.2% reference accuracy for reliable measurements
- Withstands radiation exposure to 167 Mrads TID gamma and seismic levels to 8.5g ZPA
- Durable design engineered for steam temperature up to 437 °F (225 °C) performance
