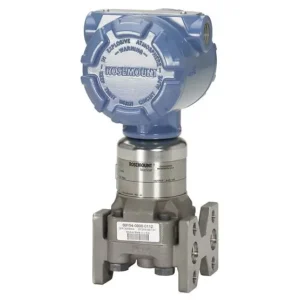

Rosemount 3153N Nuclear Qualified Pressure Transmitter
The Rosemount 3153N Nuclear Qualified Pressure Transmitter provides precise analog pressure measurements in nuclear applications. Featuring reliable performance over an extended service life, this transmitter is designed to be used within moderate accident environments. Also qualified for IEEE applications, this transmitter can offer stringent quality control during the manufacturing process, including traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing.
Specifications
| Output Signal | 4-20 mA |
| Rangedown | Up To 10:1 (5:1 for Range 1) |
| Measurement Range | Up to 2000psi (13.79 MPa) Differential, Up to 4000psig (27.58 MPa) Gage, Up to 4000psia (27.58 MPa) Absolute |
| Housing Material | Aluminum |
| Process Wetted Material | 316L SST |
| Seismic Rating | 8.5g ZPA Seismic |
| Radiation Rating | 36 Mrad (360 kGy) TID Gamma Radiation |
| Steam/Pressure Temperature | 333°F (167.2°C ) Steam/Temperature |
| Qualification Standard | IEEE Std 323™-1974/1983/2003 IEEE Std 344™-1975/1987/2004 |
| Product Literature | The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any. |
| Contact Information | Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5200 or RNII.info@emerson.com for the most current information available |
Features
- Qualified per IEEE Std 323™-1974/1983/2003 and IEEE Std 344™-1975/1987/2004 for an industry-standard solution
- Withstands radiation exposure to 36 Mrads TID gamma and seismic levels to 8.5g ZPA to meet process requirements
- Engineered for steam pressure/temperature performance for improved safety
- 0.2% reference accuracy for reliable measurements
- Quality control includes traceability of pressure-retaining parts, special nuclear cleaning and hydrostatic testing
Related Product

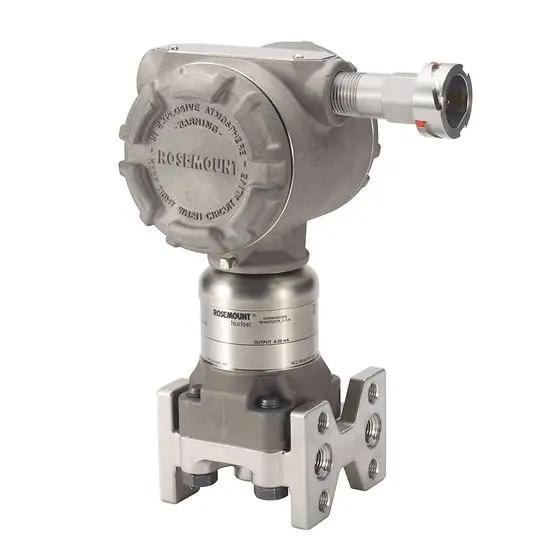

Rosemount 3155N DP
