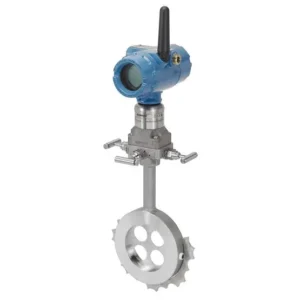

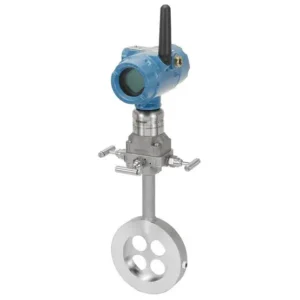

Rosemount 3051SFC Wireless Compact Conditioning Orifice Plate Flow Meter
Offering a best-in-class and cost-effective solution, the Rosemount 3051SFC Wireless Compact Conditioning Orifice Plate Flow Meter delivers accurate, multivariable measurements via a secure WirelessHART® network. This wireless flow meter includes a conditioning orifice plate with a patented, 4-hole design that enables precise measurements in turbulent flow conditions. The primary element also reduces pipe straight run, requiring only two pipe diameters (2D) upstream and downstream.
Specifications
| Warranty | Up to 15-year limited warranty |
| Rangedown | Up to 200:1 (14:1 flow turndown) |
| Measurement Range | Up to 2000 psi (137,89 bar) differential, Up to 3626 psia (250,00 bar) absolute, Up to 3626 psig (250,00 bar) gage |
| Line Size | 2 to 12 in. (50 to 300 mm) |
| Output | Differential pressure, static pressure, scaled variable |
| Communication Protocol | WirelessHART® |
| Process Wetted Material | 316 SST |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NACE, hazardous location, see full specs for complete list of certifications |
| Update Rate | 1 sec. to 60 min., user selectable |
| Power Module Life | Up to 10-year life, field replaceable (order separately) |
| Wireless Range | Long range (225 m), extended range (800 m), remote (225 m) and high-gain remote (1 km) |
Features
- WirelessHART® technology is secure, cost-effective and delivers >99% data reliability
- Ultra for Flow performance class enables optimized flow measurement with a ±0.04% of reading accuracy
- Primary element with patented 4-hole design enables accurate flow measurement in turbulent flow profiles
- Innovative orifice plate requires only 2D upstream and downstream to reduce pipe straight-run requirements
- All-welded, resilient SuperModule™ sensor offers best-in-class accuracy in harsh environments and applications
- Flowmeters come fully configured, leak-tested and ready to install right out of the box for fast installation
- Flowmeter technology eliminates unnecessary pipe penetrations for an integrated, trouble-free solution
- Orifice plate self-centering mechanisms simplify installation and ensure optimal flow measurement accuracy
- SmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removal
- Easy installation enables quick instrumentation of measurement points without the cost of wiring
