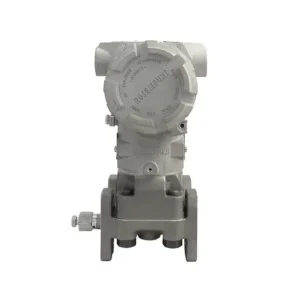

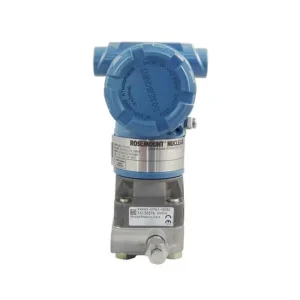

Rosemount 3051N Smart Pressure Transmitter for Nuclear Service
The Rosemount 3051N Smart Pressure Transmitter for Nuclear Service is engineered to provide precision in differential, gauge and absolute pressure measurements with ±0.075% reference accuracy. As one of the world’s first digital nuclear pressure transmitters, this device is qualified for use in Class 1E safety related applications per IEEE 344-1987 at SSE response spectrum levels up to 16.5 g’s, and IEEE 323-1983 (mild environment).
Specifications
| Output Signal | 4–20 mA with Digital Signal Based on HART Protocol |
| Rangedown | Up To 100:1 (see Full Specs for complete details) |
| Measurement Range | Up to 2000 psig (13.8 MPa) Differential, Up to 2000 psig (13.8 MPa) Gage, Up to 4000 psia (27.5 MPa) Absolute |
| Housing Material | SST, Aluminum |
| Process Wetted Material | 316L SST |
| Seismic Rating | SSE response spectrum levels up to 16.5g's |
| Radiation Rating | No rating |
| Steam/Pressure Temperature | No rating |
| Qualification Standard | IEEE Std 323™-1974/1983/2003 IEEE Std 344™-1975/1987/2004 |
| Product Literature | The Product Data Sheets and Manuals posted on this web-site are intended for general product information only, with errata included. They may not represent the latest revision or contain information relating to recent product notifications, if any. |
| Contact Information | Please contact Rosemount Nuclear Instruments, Inc. at 1-952-949-5200 or RNII.info@emerson.com for the most current information available. |
Features
- Qualified per IEEE Std 344-1987 and IEEE Std 323-1983 (mild environment) to meet industry standards
- Provides ±0.075% accuracy for reliable and precise process measurements
- Rangedown of 100:1 reduces inventory costs for cost-efficiency
- Non-interacting zero and span adjustment reduce calibration time
- Coplanar sensor/process interface allows for maximum mounting flexibility and can reduce flange stress
- Adjustable damping up to 25.6 seconds for better process control
- Internal diagnostics for simplified maintenance and time savings
