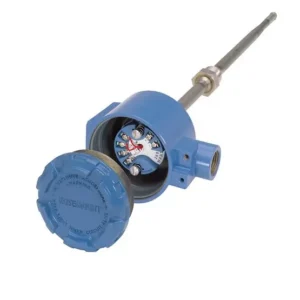

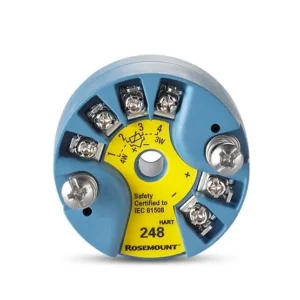

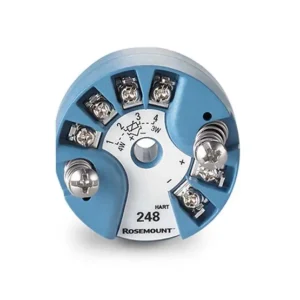

Rosemount 248 Head Mount Temperature Transmitter
An industry-standard solution, the Rosemount 248 Temperature Transmitter delivers consistent and reliable performance for process environments. Engineered to meet requirements for common single point temperature measurement applications, its durable design withstands a wide range of process environments. For application flexibility, this head mount temperature transmitter is available with a variety of housing options.
Specifications
| Input | Single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms) |
| Output Signal | 4-20 mA /HART™ protocol |
| Housing | DIN B head mount |
| Diagnostics | Basic diagnostics including open/short sensor diagnostics |
| Calibration Options | 5-point calibration |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications |
Features
- Standard transmitter meets common single point temperature measurement application requirements
- Housing construction provides superior resistance to many process environments
- One-year stability rating reduces maintenance costs
- Open/short sensor diagnostics help detect issues in the sensor loop to ensure reliable performance
- Device dashboards provide easy interface for simplified device configuration and diagnostic troubleshooting
- Transmitter-sensor matching with Callendar-Van Dusen constants reduces total measurement error
