Rosemount 2088 Gauge and Absolute Pressure Transmitter and 1199 Seal
With the Rosemount 2088 Gage and Absolute Pressure Transmitter, you can keep on schedule with a quick and easy-to-install solution. This transmitter features a Local Operator Interface (LOI) that has easy-to-use menus and built-in configuration buttons, so you can commission the device on the spot without complicated tools. This pressure transmitter is also available with manifolds and remote seals.
Specifications
| Warranty | Up to 5-year limited warranty |
| Rangedown | Up to 50:1 |
| Communication Protocol | 4-20 mA HART®, 1-5 V Low Power HART® |
| Measurement Range | Up to 10,000 psig (689,47 bar) Gage, Up to 10,000 psia (689,47 bar) Absolute |
| Process Wetted Material | 316L SST, Alloy C-276 |
| Diagnostics | Basic Diagnostics |
| Certifications/Approvals | NSF, NACE®, hazardous location, see full specs for complete list of certifications |
| Seal System Type | Direct Mount, Remote Mount, Tuned-System, Balanced System |
| Transmitter Connection | Welded-Repairable, All Welded |
| Process Connection | Flanged: ANSI/ASME, EN/DIN, GOST, & JIS Threaded: NPT, DIN, ISO Hygienic |
| Process Wetted Material | 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST, CorrosionShield PFA coated 316 SST, see PDS for full list of materials |
| Certifications/Approvals | SIL 2/3 certified to IEC 61508 by an independent 3rd party, 3A, NACE®, hazardous location, see PDS for full list of certifications |
Features
Rosemount™ 2088 Gauge and Absolute Pressure Transmitter
- Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
- Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
- Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
- Lightweight, compact design allows for easy installation

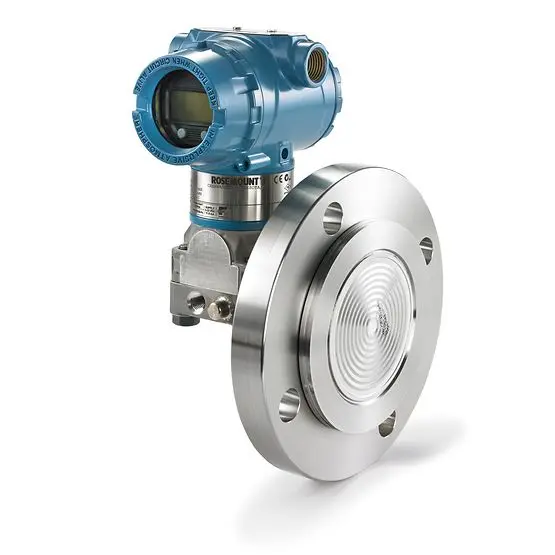

Rosemount™ 1199 Diaphragm Seal System
- Protects transmitter diaphragm from corrosive, erosive or extreme temperature processes
- Wide variety of seals meet varying process requirements and specifications, including industry-specific applications
- SIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
- Eliminates need for mounting hardware to reduce installation costs
- Adaptable direct mount gage or absolute seal system can be used for pressurized or vented tank applications
- Tuned-Systems can reduce temperature effects by 10-20% and improve response time by 80% vs. traditional installations
