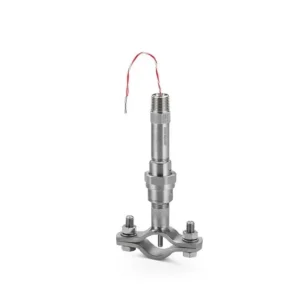

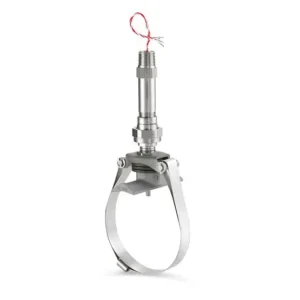

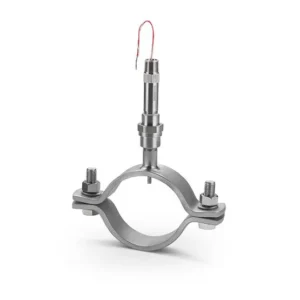

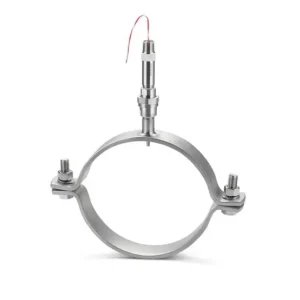

Rosemount 0085 Pipe Clamp Temperature Sensor
For easy installation anywhere, the Rosemount 85 Pipe Clamp Temperature Sensor offers a selection of clamp styles, sizes, and materials to provide an adaptable surface temperature measurement solution over a wide range of temperatures. This platinum, resistance temperature detector (RTD) sensor comes with a silver or nickel tip for improved response time and is an ideal solution for applications with high velocities, heavy liquids or particulates. The spring-loaded sensor ensures optimal surface contact for improved performance.
Specifications
| Pipe Clamp Materials | ASTM 304 SST (1.4301), Duplex F51 (1.4462), Carbon steel (1.0037) |
| Lead Wires | PTFE insulated, silver-coated copper wire |
| Insulation Resistance | 1,000 MΩ minimum insulation resistance when measured at 500 V dc at room temperature |
| Calibration Options | Class A Sensor from -50 to 300 °C (-58 to 572 °F) |
| Certifications/Approvals | Hazardous location, see full specs for complete list of certifications |
Features
- Sensor covers wide range of temperatures -58 to 572 °F (-50 to 300 °C) to meet application demands

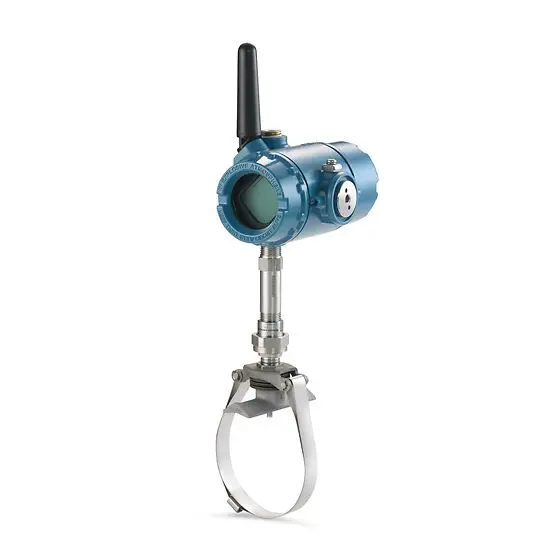

- Direct mounts to Rosemount 648 Wireless with Rosemount X-well™ Technology for accurate process temperature measurement
- Wide variety of clamp styles, sizes, and materials allows for installation anywhere and provides application flexibility
- Installation requires only two bolts (no welding required) for a straightforward connection
- Platinum RTD temperature sensors designed with silver tip for improved response time
- Withstands applications with high velocities, heavy liquids or particulates for durability and stability
- Non-intrusive design eliminates need for process penetration of fluids with toxic properties for added safety
- Spring-loaded sensor ensures best surface contact for enhanced performance
