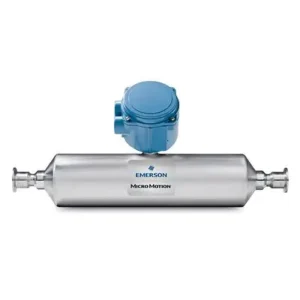

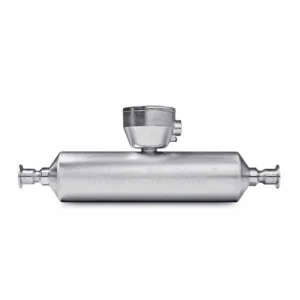

Micro Motion T-Series Straight Tube Coriolis Flow and Density Meters
With superior flow measurement in a single straight-tube design, the T-Series Coriolis Flow and Density meter features all titanium-wetted parts for excellent corrosion resistance, and is self-draining with a plug-resistant flow path.
Specifications
| Liquid Accuracy / Repeatability | up to ±0.15% of rate (up to ±0.05% of rate) |
| Gas Accuracy / Repeatability | ±0.50% of rate |
| Density Accuracy / Repeatability | ±0.002 g/cm3 (±0.0005 g/cm3) |
| Line Size | 1/4" (DN8) - 2" (DN50) |
| Pressure Range | up to 1450 psig (100 barg) |
| Temperature Range | -60 to 300 F (-51 to 149 C) |
| Electronics (soft) | Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus |
| Turndown | 0.417361111 |
Features
- Achieve direct, in-line measurement of mass flow, density, concentration and volume flow and temperature from one device
- Choose available titanium construction for compatibility with most fluids
- Meet virtually any connectivity needs with a wide range of transmitter offerings
- Use with hygienic applications with an improved 15 and 32 rA surface and EHEDG, certified, 3-A authorized and ASME BPE
- Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
- Save time with a design that is easy to clean in place (CIP) and steam in place (SIP)
- Simplify installation with a highly robust design that doesn’t need straight runs or flow conditioning
