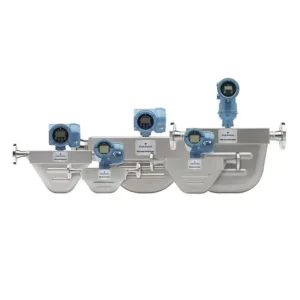

Micro Motion F-Series Compact, Drainable Coriolis Flow and Density Meters
Delivering highly reliable and robust measurement, F-Series flow meters are the preferred choice for process control applications. Choose these smart meters to more efficiently run your process and resolve your toughest productivity challenges
Specifications
| Liquid Accuracy / Repeatability | Up to ±0.1% of rate (0.05% of rate) |
| Gas Accuracy / Repeatability | Up to ±0.35% of rate (0.25% of rate) |
| Density Accuracy / Repeatability | Up to ±0.0005 g/cm3 (0.0002 g/cm3) |
| Line Size | 1/4" (DN6) - 4" (DN100) |
| Pressure Range | Up to 6250 psig (430 barg) |
| Temperature Range | -148 °F to 662 °F (-100 °C to 350 °C) |
| Electronics (soft) | Expansive I/O options including mA, Frequency, Discrete, HART, Modbus, Ethernet/IP, PROFINET, FOUNDATION Fieldbus |
| Turndown | 20:1 |
Features
- Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design
- Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
- Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and data logging
- Broad range of meter approvals and certifications, including, but not limited to; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
- Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil
- Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology
- Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
- Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters
