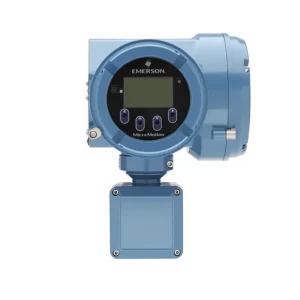

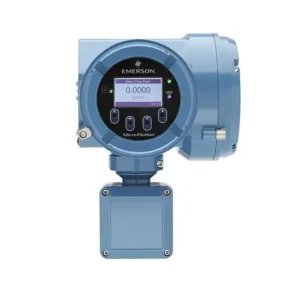

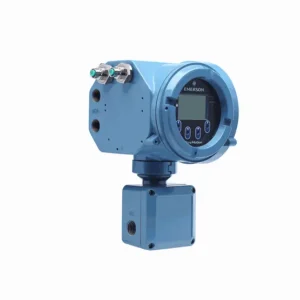

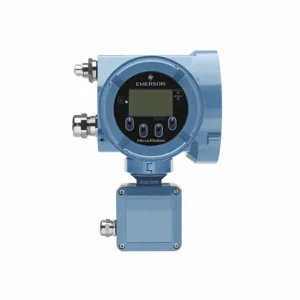

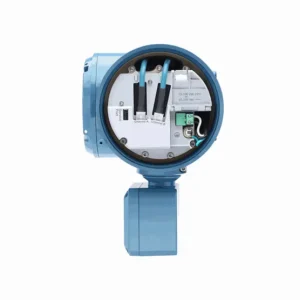

Micro Motion 5700 Field-Mount Transmitter
Delivering the best in measurement technology and unparalleled support, the 5700 transmitter’s intuitive design ensures measurement confidence, valuable process insight and productivity through simplified solutions. Data historian feature captures rich information about process events, fluid quality, and measurement stability – over long and short periods of time. Zero Verification tool provides confidence in the meter zero and analyzes process conditions to indicate potential issues for re-zeroing.
Specifications
| Local display | Graphical backlit display Four-button optical controls Flowmeter-status LED Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages. |
| Power | Self-switching AC/DC input, automatically recognizes supply voltage 85 to 2405 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum 18 to 100 VDC, 6 watts typical, 11 watts maximum Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2 |
| Universal Service Port | Universal Service Port design allows for connection and data transfer using standard, readily available equipment. |
| Configurable I/O version | Up to 5 licensable channels with the following possible configurations: 1 to 3 4-20 mA outputs 1 to 3 Pulse outputs 1 to 3 Discrete outputs 1 to 2 Discrete inputs 1 mA input 1 Modbus/RS-485 Channel A: mA/HART Channel B: mA/FO/DO Channel C: mA/FO/DO/DI Channel D: mA-input/FO/DO/DI Channel E: Modbus RS-485 |
| Communication Protocol | WirelessHART WirelessHART available with the 775 Smart Wireless THUM adapter. FOUNDATION Fieldbus version FOUNDATION Fieldbus channel mA output Pulse output PROFIBUS-PA version PROFIBUS-PA channel mA IS output Pulse IS output |
| Wi-Fi Display Option: | Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only. |
| Intrinsically Safe version | Up to 4 licensable IS channels with the following configurations: Channel A: mA/HART Channel B: mA Channel C: mA/FO Channel D: FO Channel E: Not Used SIL Certified Device Available – Uses an internal readback loop to verify the milliamp output |
| Ethernet version | Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device Additional channel included configurable to mA output, pulse output, discrete output, or discrete input Pre-installed M12 quick connections available as an option |
| Mounting options | Field-mount aluminum and stainless steel housing options Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only) Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions) |
| Application types | Smart Meter Verification Professional Discrete batch control Petroleum measurement and API correction option Concentration measurement Advanced Phase Measurement for two phase flow remediation Piecewise Linearization for Gas Applications |
| Certificates/Approvals | Hazardous approvals Class I, Div. 1 Class I, Div. 2 Zone 1 Zone 2 SIL/SIS Certification 5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section. |
Features
- Perform fast, flexible installations with a native Ethernet architecture and connections
- Achieve the best response in the most challenging applications, such as meter proving, filling and dosing and batching
- Capture short- and long-term insight about process events, fluid quality and measurement stability with a data historian
- Monitor more process measurements with availability of up to 5 fully configurable I/O channels
- Check meter health in fewer than 90 seconds with Smart Meter Verification
- Easily confirm calibration when it’s time to re-zero the meter with zero verification
- Improve process control with real-time indication of multi-phase flow events
- Minimize the time and expertise needed to install and operate the flow meter
Related Product
F-Series Compact, Drainable Coriolis Flow and Density Meters
T-Series Straight Tube Coriolis Flow and Density Meters
Rosemount 8705 Flanged Magnetic Flow Meter Sensors

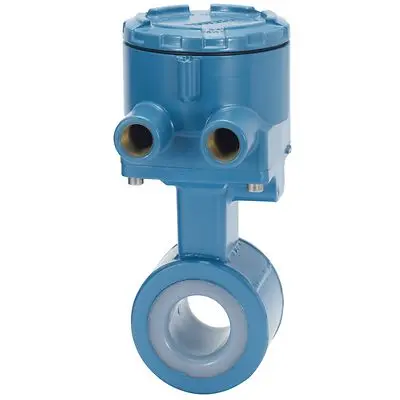

Rosemount 8711 Wafer Magnetic Flow Meter Sensors
